Description

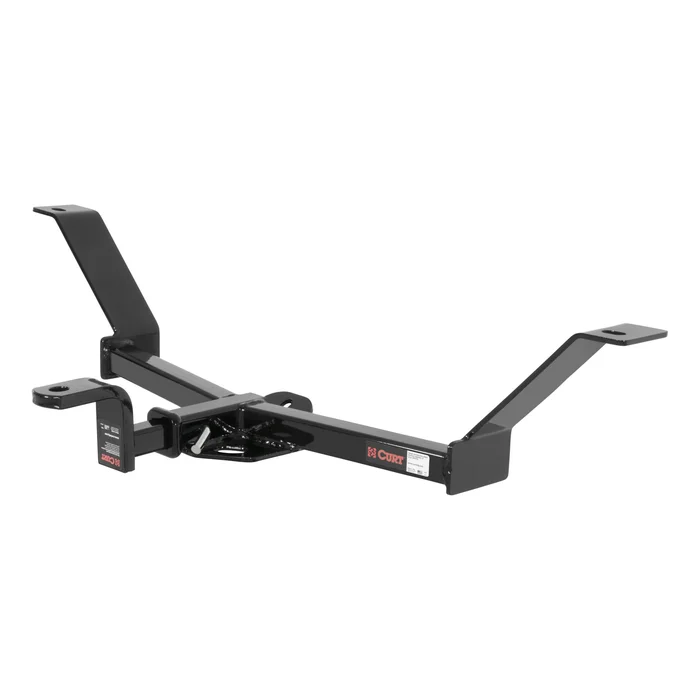

CURT 113153 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Subaru Impreza
Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Subaru Impreza (see application info to verify fitment). The hitch integrates with the vehicle’s frame and provides a useful and dependable 1-1/4″ x 1-1/4″ receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4″ trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you’re headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
- Rated to 2,000 lbs. gross trailer weight and 200 lbs. tongue weight
Information:
Rated to 2,000 lbs. gross trailer weight and 200 lbs. tongue weight
Application Summary:
| Year | Make/Model |
|---|---|
| 2008-2011 | Subaru Impreza |
Specification
| Attributes | |
| ASIN | B001FVAPSU |
| Body Shape | Square |
| Box Height in Inches – XA | 19, 19 |
| Box Length in Inches – XA | 41, 41 |
| Box Width in Inches – XA | 9, 9 |
| California Proposition 65 | Yes |
| Class ID | 1, 1 |
| Container Volume Cubic Feet – XA | 0.00000, 0.00000 |
| Container Volume Cubic Meter – XA | 0.00000, 0.00000 |
| Country of Origin (Primary) | US |
| Drilling Required | No |
| Finish | Gloss Black Powder Coat |
| Finish – XA | GLOSS BLACK POWDER COAT, GLOSS BLACK POWDER COAT |
| GTIN | 00612314113156 |
| Gross Trailer Weight | 2000 lbs. |
| Gross Trailer Weight (lbs.) | 2000 |
| Harmonized Tariff Code (Schedule B) | 8708998180 |
| Hazardous Material Code | N |
| Hole Size | 3/4 IN, 3/4 IN |
| Install Time | 30 Minutes |
| Item Class – XA | MFH, MFH |
| Item Height – XA | 7.780, 7.780 |
| Item Length – XA | 36.120, 36.120 |
| Item Width – XA | 18.250, 18.250 |
| Life Cycle Status Code | Available to Order |
| Long Description | Class I Trailer Hitch, Pin & Clip, Old-Style Ball Mount |
| Main Body Shape | Square, Square |
| Master Case Height Inches – XA | 0.000, 0.000 |
| Master Case Length Inches – XA | 0.000, 0.000 |
| Master Case Volume Cubic Feet – XA | 0.00000, 0.00000 |
| Master Case Weight Lbs – XA | 0.000, 0.000 |
| Master Case Width Inches – XA | 0.000, 0.000 |
| Material – XA | Carbon Steel, Carbon Steel |
| Mount Type Description – XA | Blank, Blank |
| NAFTA Preference Criterion Code | B |
| Pallet Qty – XA | 0.000, 0.000 |
| Pallet Total Height Inches – XA | 0.000, 0.000 |
| Pallet Total Weight Per – XA | 0.000, 0.000 |
| Parcel Allowed – XA | Yes, Yes |
| Position | Rear |
| Price Code – XA | 137K, 137K |
| Product Weight – XA | 24.700, 24.700 |
| Rate Class – XA | 70.0, 65.0 |
| Receiver Size | 1-1/4 |
| Receiver Tube Size | 1-1/4 IN, 1.250 in. |
| Retail Height – XA | 10.000, 10.000 |
| Retail Length – XA | 42.000, 42.000 |
| Retail Width – XA | 21.000, 21.000 |
| SDR Required Flag | N |
| Sales Family Code – XA | HITCH, HITCH |
| Sales Family Description – XA | HITCH, HITCH |
| Sales Group Description – XA | CL 1, CL 1 |
| Shipping Weight – XA | 29.700, 29.700 |
| Side Application Type Description – XA | Blank, Blank |
| Tariff 301 – XA | No, No |
| Tongue Weight (TW) | 200 LB, 200 LB |
| Tongue Weight(TW) | 200 LB |
| Truckload Volume Cubic Feet – XA | 0.00000, 0.00000 |
| Visibility | Exposed |
| WC Tongue Weight | 200 |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts), Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Weight Carrying Capacity | 2000 |
| Weight Carrying Capacity (WC) | 2,000 LB, 2,000 LB |
| Weight Carrying Capacity(WC) | 2,000 LB |
| Weight Distribution (WD) | n/a |
| Weight Distribution Tongue Weight (WDTW) | n/a |
| Weight Distribution Tongue Weight(WDTW) | n/a |
| Weight Distribution(WD) | n/a |
